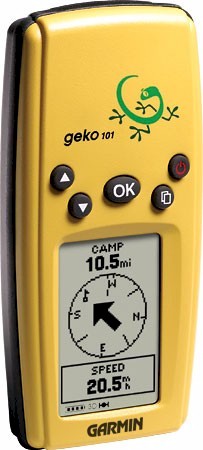

GARMIN Geko 101

Small hand held GPS receiver with easy to read display.

The GARMIN Geko 101 is very easy to use and has an extremely sensitive antenna, which provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples). It's a great device for novice as well as for experienced GPS users.

Features: Portable, robust, very handy Easy to read display with background illumination (64x100 pixels) English user interface Integrated 12 channel GPS receiver with very sensitive built-in antenna Powered by batteries (2x AAA, last about 12 h) Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available) Supports 18 different datum (coordinate systems) Supports various display formats include the Swiss Grid Operating temperatures -15 .. 70°C (5° .. 158°F) No serial interface Dimensions: 48x99x24 mm (1.9x3.9x1 inches) Weight: 88 g (3.1 ounces, with batteries) Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (IPX7) ¹) TTFF: Time To First Fix, time until the first information about the local position is acquired. Information for navigation: Stores up to 250 waypoints with name (up to 6 characters), icon (choice of 20 symbols) and coordinates Current position (longitude, latitude, altitude) Current accuracy of the position information Current time Current bearing Current, average and maximum speed Trip duration and distance (Odometer) Stores up to 3'000 track points (travelled path) Supports metric, nautical and U.S. units

To table of contents

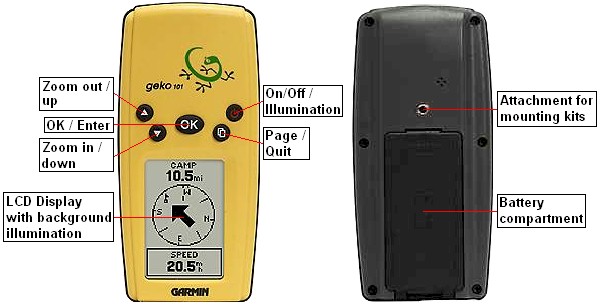

GARMIN Geko 101 overview:

To table of contents

Main pages of the GARMIN Geko 101:

Menu	Satellites	Map	Pointer	Waypoint
Save current location as waypoint Manage waypoints Time format Units Settings	Status Accuracy of current position information Strength of satellites' signals	Waypoints Travelled path (Track) Current scale	Next waypoint Distance to waypoint Direction to waypoint Current speed1)	Symbol Name (up to 6 characters) Elevation Coordinates

1) The content of this data field is user configurable. You can select one of the following information: Current speed, heading, trip odometer, trip time, date and time, location (coordinates), elevation, maximum speed, average speed.

You may reset the trip-counters and the maximum speed independently of each other.

To table of contents

Price:

• GARMIN Geko 101: This model has been discontinued; however, you can still order options for the Geko 101.

To table of contents

Options:

Belt holster			CHF 19	/	EUR 15	[Picture and details]
Belt clip			CHF 22	/	EUR 17	[Picture and details]
Mounting adapter for larger handlebars (25..32 mm)			CHF 17	/	EUR 13	[Picture and details]
Mounting kit with suction cup for windshields in cars etc.			CHF 52	/	EUR 40	[Picture and details]
Mounting kit for dashboard			CHF 52	/	EUR 40	[Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle			CHF 22	/	EUR 17	[Picture and details]
Removable base for seemless switching between multiple vehicles			CHF 49	/	EUR 38	[Picture and details]

All options for the GARMIN Geko 101 in detail.

To table of contents

Downloads:

Here we provide additional documentation related to the Geko 101.

• owner's manual (in PDF format, 445 kB)

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for the GARMIN Geko 101 please:

1. Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket.
2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents
