GPS receiver with fast auto-routing, voice-activated navigation, voice guidance including announcement of street names, lane assistant, traffic news receiver, color display with touchscreen, worldwide base map, pre-loaded detailed maps of all of Europe plus Blue Tooth and USB interface. Well suited as navigation system in vehicles but may also be used as hand held device.
The model GARMIN Nüvi 865T provides fast automatic route calculation - including multiple intermediate destinations if required - plus visual and voice guidance. The voice-activated navigation feature allows you to talk to your Nüvi 865T while you keep your hands on the wheel and your eyes on the road. The lane assistant indicates the correct path in great detail if there are multiple lanes. There is also a TMC receiver included to
incorporate traffic news. The Nüvi 865T is easy to use, has a large, easy to read color display with touch screen, an extremely sensitive antenna and an integrated worldwide base map. It is very well suited as a navigation system in cars, but you may also use it as a hand held device.
It has 3.48 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded
maps of all of Europe which occupy approximately 2.96 GB of memory including various language files. The remaining 535 MB memory is available to store additional detailed maps, MP3 and waypoint files or pictures.
This model also has a speech computer to announce the names of the roads, to speak words and phrases of the language guides and to read audible books. It plays sound either through the built-in loudspeakers or through your car sound equipment using the integrated mini FM transmitter.
The Nüvi 865T is equipped with a BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the phones. In addition, the GPS has a slot for an optional microSD memory module to store additional maps or data and an USB connector to exchange data with a computer. The
device is powered by a rechargeable battery. The Nüvi 865T provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).
Contents: Features - Navigation - Overview - Main Pages - Price - Options - Maps - Downloads - Order
- Integrated 12 channel receiver with very sensitive built-in antenna, connector for external GPS antenna (external antenna available as an option).
- User interface in 32 languages: Afrikaans (South Africa), American English, Arabic, British English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish and four asian languages.
- Voice prompting in 39 languages: Afrikaans, American English, Arabic, Brazilian Portuguese, British English, Bulgarian, Canadian French, Cantonese, Catalan, Croatian, Czech, Danish, Dutch, Estonian, European French, European Portuguese, Finnish, Flemish, German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Luxembourgish, Mandarin (China), Mandarin (Taiwan), Norwegian, Polish, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Taiwanese and Turkish.
- Integrated worldwide base map with countries of all continents including major cities and major highways.
- 3.48 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded maps of all of Europe which occupy approximately 2.96 GB of memory including various language files. The remaining 535 MB memory is available to store additional detailed maps, waypoint files and pictures.
- Routing speed: 11.5 (see GPS Routing Speed for details).
- Supports FM traffic news receiver (TMC receiver included). Receives and processes traffic news messages broadcasted by radio stations. If the GPS receives a message about a traffic jam, blocked road etc. along the planned route, it can automatically compute a detour. Traffic news messages are broadcasted by many radio stations in various European countries including Austria, France, Germany, Italy and Switzerland. These messages are broadcasted for free and do not require any
subscriptions. The TMC receiver works independent from the car radio and finds stations with traffic news messages automatically.
- Integrated mini FM transmitter to play sound through your car sound equipment.
- Slot for µSD memory card (µSD memory cards available as options).
- The travel kit provides the following features:
- MP3 player
- Audible book reader, reads audible books; download audible books from the Internet.
- Picture viewer, displays pictures and provides various options, such as zooming, rotation etc.
- World clock
- Calculator
- Currency converter
- Measurement converter
- Suited as a hand held device or to be used in any kind of vehicles. Comes with power cable and mounting kit with suction cup for quick mounting and dismounting to easily remove the GPS receiver (seamless switching between cars, theft protection etc.), does not require any installation.
- Large, illuminated, easy to read LCD display with automatic backlight adjustment. Dimension: 97x57 mm (3.81x2.25 inches), resolution: 480x272 pixels, 65536 colors
- Easy to operate via touchscreen.
- Manual or automatic switching of the display between daytime and nighttime, based on time and the current position (changes the colors of the display between sunset and sunrise for more comfortable viewing) Daytime: bright background, nighttime: dark background.
- Device is not waterproof.
- Powered by built-in replaceable, rechargeable battery (lasts up to 4 h) or by an external 12/24 V power source, e.g. from a car's cigarette lighter (power cord included).
- Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
- Data exchange with PC via USB connector (connection cable included).
- Supports WAAS
- Firmware stored in Flash-Memory, can be updated by the user
- Operating temperatures 0 .. 60°C (32 .. 140°F)
- Dimensions: 125x78x18 mm (4.9x3.1x0.7 inches)
- Weight: 176 g (6.2 ounces)
¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.
To table of contents
Voice-activated navigation:
Example of a dialog between a driver and the Nüvi 865T:
| Driver: |
"Where to" |
| Nüvi 865T: |
"Select the search category" |
| Driver: |
"Points of Interest" |
| Nüvi 865T: |
"Search by category or place name ?" |
| Driver: |
"Category" |
| Nüvi 865T: |
"Select the search category" |
| Driver: |
"Fuel" |
| Nüvi 865T: |
"Searching for fuel ..." |
| |
The GPS shows the four closest gas stations |
| Nüvi 865T: |
"Select the line number" |
| Driver: |
"Page down" |
| |
The GPS shows the next four gas stations on the list |
| Driver: |
"Three" |
| |
The GPS shows information about the selected gas station |
| Nüvi 865T: |
"Would you like to begin navigation ?" |
| Driver: |
"Yes" |
| |
The GPS shows the map and the first driving direction |
Note: You may also speak names of cities and roads and house numbers; Names of points of interest (hotels, restaurants etc.) must be typed in using the keyboard.
- Automatic computing of a route to a user selected destination including optional via-points.
Various options to control route computation including manual and automated sorting of via-points.
- Lane assistant shows exactly which lane to take and when to switch lanes.
- Automatic re-calculation of the route when leaving the planned route.
- Automatic re-calculation of the route when receiving a message about a traffic jam or a blocked road along the planned route
(TMC receiver included).
- Guidance on the display (visual guidance) and voice guidance via the loudspeaker (acoustic guidance). Also announces road names with navigation instructions.
- Fast route calculation and re-calculation.
Finds routes 11.5 times faster than the GARMIN StreetPilot III, see GPS Routing Speed for more information.
- World map with zoom function.
- Pre-installed detailed map of Europe (City Navigator Europe NT)
- Information on the map displayed in 5 levels of details.
- Find waypoints, cities and exits.
- Extended search function for points of interest, addresses and intersections.
- Stores up to 500 waypoints with name (up to 30 characters), icon (choice of more than 80 symbols), image and phone number. Supports categories to organize waypoints.
- Current elevation above see level
- Current time
- Current bearing
- Current, average and maximum speed
- Trip duration and distance (Odometer)
- Supports metric and U.S. units
To table of contents
To table of contents

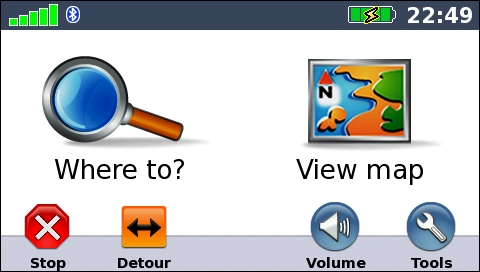

| Main Menu |

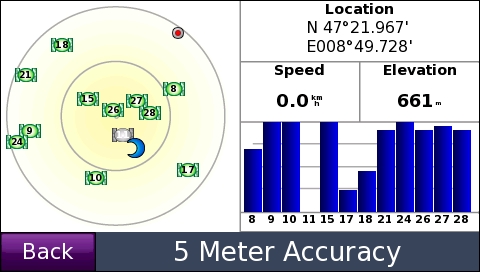

Satellites |
 |
 |
- Status bar with GPS signal strength, Blue Tooth status, status of the battery, current time
- Search destination
- View map
- Stop navigation (only shown if there is an active route)
- Compute a detour (only shown if there is an active route)
- Adjust volume
- Tools (system settings, information about current position, manage data, image viewer, world clock, calculator etc., see Tools 1..2 below)
|
- Position of the satellites, the sun and the moon
- Coordinates of the current position
- Current speed
- Current elevation above sea level
- Strength of the satellites' signals
- Back to previous page
- Accuracy of the current position indication
|

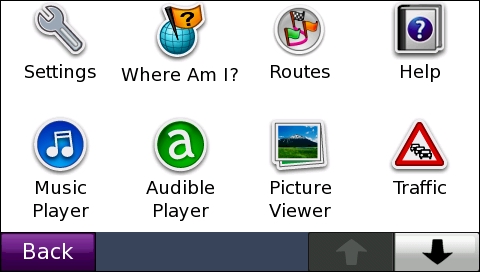

| Tools (1 of 2) |

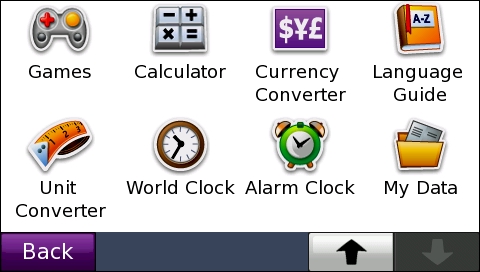

Tools (2 of 2) |
 |
 |
- Settings (system, navigation, display, time, languages (text and speech), map, safety and alarms)
- Current position (coordinates and elevation, nearest address, nearest intersection, find nearest hospitals, police stations, gas stations and road side assistances, save current position as waypoint)
- Route management
- Help about using your Nüvi 865T
- MP3 player, listen to your favorite music while travelling
- Audible book reader, reads audible books; download audible books from the Internet
- Picture viewer, displays pictures and provides various options, such as zooming, rotation etc.
- Traffic messages
- Back to previous page
- To the next tools page
|
- Various games
- Calculator with four basic operations
- Curreny converter
- Language guide (demo, full featured language guide available as an option
- Unit converter to convert units such as distances, areas, volumes, speed, weight etc. in metric and american units.
- World clock showing current time at different locations
- Alarm clock
- Manage your own data ("Home", erase track, manage your own waypoints)
- Back to previous page
- To the previous tools page
|

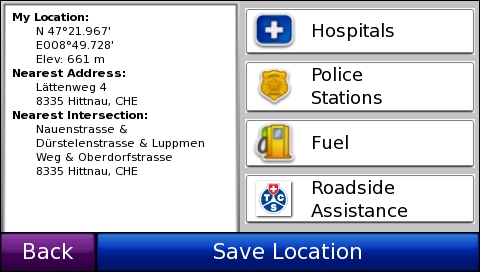

| Current Position |

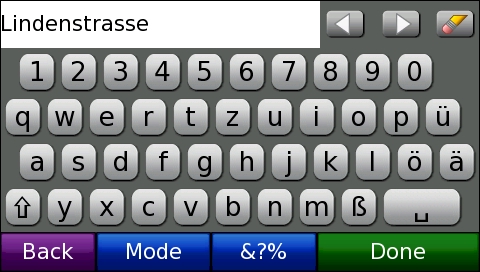

Text Entry |
 |
 |
- Current position (coordinates and elevation)
- Nearest address
- Nearest intersection
- Find nearest hospitals
- Find nearest police stations
- Find nearest gas stations
- Find nearest road side assistances
- Back to previous page
- Save current position as waypoint
|
- Field for text entry
- Move cursor left
- Move cursor right
- Delete last character
- Keyboard
- Back to previous page
- Keyboard mode (language)
- Switch to special characters
- Finish text entry
|

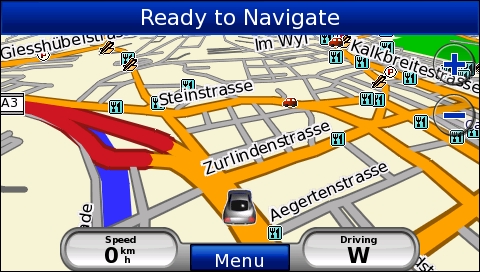

| Map (day mode) |

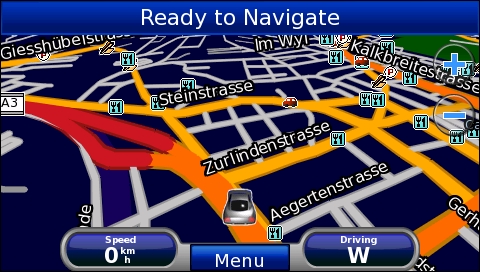

Map (night mode) |
 |
 |
- GPS status
- Map in 3D view in day mode with current position (grey car)
- Current speed
- To main menu
- Current heading
|
- GPS status
- Map in 3D view in night mode with current position (grey car)
- Current speed
- To main menu
- Current heading
|

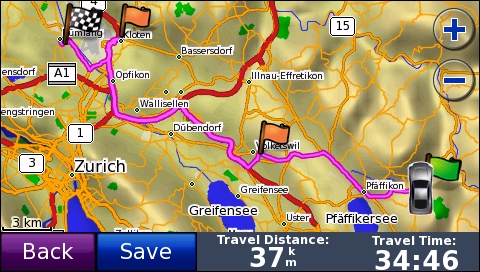

| Route |

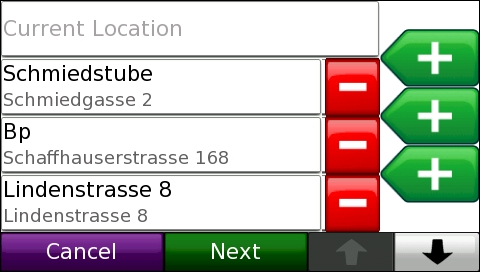

Vias |
 |
 |
- Planned route (pink line) with current position (grey car), start (green flag), vias (orange flags) and final destination (black and white flag)
- Back to previous page
- Save current route
- Length of the planned route
- Estimated travel time for the complete route
|
- Start of the route
- Vias, also known as intermediate destinations (you may move or delete each via point)
- Insert new via point
- Back to previous page
- Re-calculate the route, the GPS may optimize the order of the vias to find the shortest route
- To the next vias
|

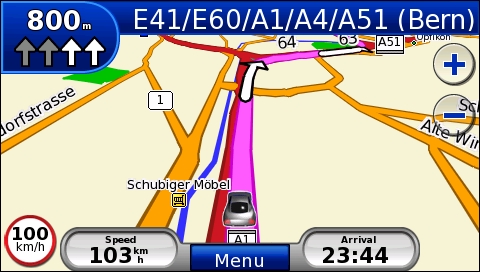

| Direction |

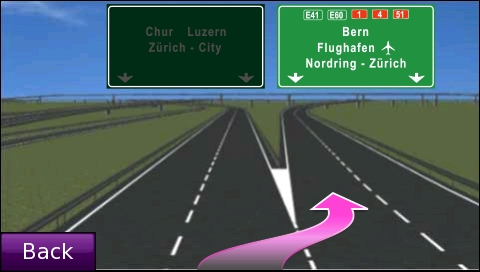

Lane Assistant |
 |
 |
- Direction with distance to next turn and type of turn
- Name of the road onto which you will turn
- Map with current position (grey car), planned route (pink line), next turn (white arrow) and current speed limit (sign with red circle)
- Current speed
- To main menu
- Estimated arrival time at final destination
|
- Detailed view of the lanes at the next turn
- The arrow indicates which lane to take
- Back to previous page
|

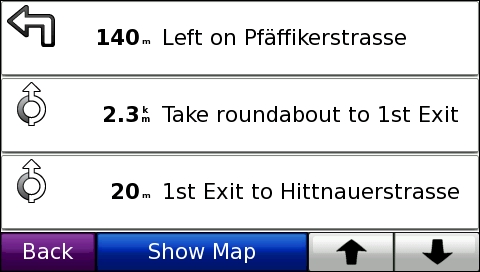

| Directions |

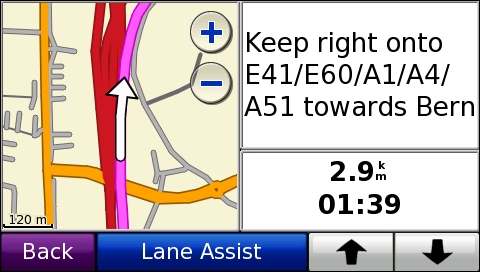

Autozoom |
 |
 |
- Type of and distance to next turn
- Direction
- Back to previous page
- Show route on map
- To the previous directions
- To the next directions
|
- Highly zoomed map with detailed view of next turn (will be display automatically when approaching a turn)
- Change scale ("-" and "+")
- Direction
- Distance to next turn
- Estimated time to next turn
- Back to previous page
- Lane assistant (only shown if available for that particular turn)
- To previous turn
- To next turn
|

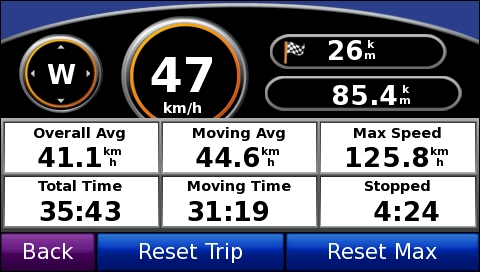

| Trip Computer |

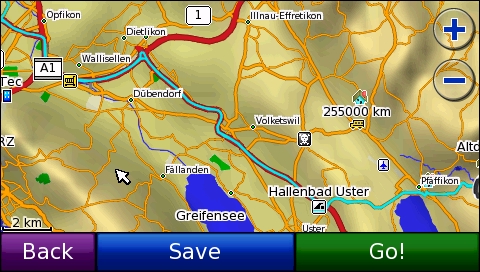

Track |
 |
 |
- Current moving direction
- Current speed
- Distance to final destination
- Travelled distance (odometer)
- Average speed including stopped time
- Average speed without stopped time
- Maximum speed
- Total time since last reset
- Total moving time
- Total stopped time
- Back to previous page
- Reset trip data (odometer, average speed, time)
- Reset maximum speed
|
- Map with travelled path (track, blue line), you may show or hide the track on the map
- Change scale ("-" and "+")
- Back to previous page
- Save position (head of arrow) as waypoint
- Navigate to position (head of arrow)
|

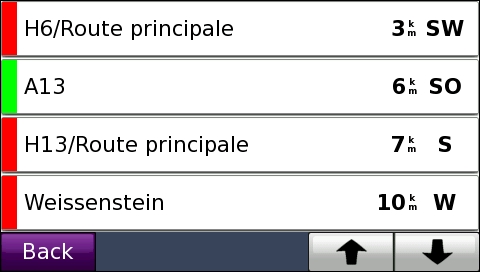

| Traffic Messages |

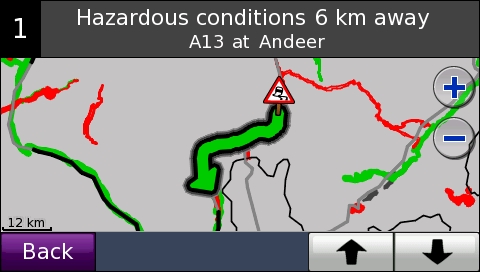

Traffic Message |
 |
 |
- Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
- Name of affected road (touch to display traffic incident on the map)
- Distance from current location to traffic incident
- Direction from current location to traffic incident
- Back to previous page
- Previous traffic incidents
- Next traffic incidents
|
- Type of traffic incident and distance from current position to incident
- Name of affected road
- Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
- Change scale ("-" and "+")
- Back to previous page
- Previous traffic incident
- Next traffic incident
|

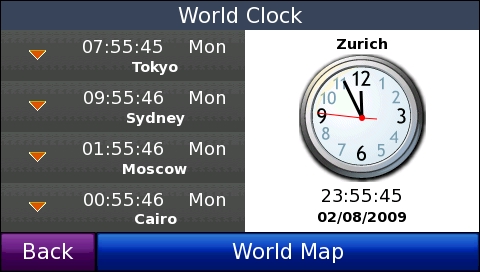

| World Clock |

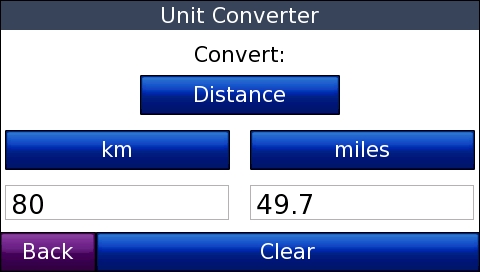

Unit Converter |
 |
 |
- Cities with time and day of week (choose cities from list)
- Time and date at current position
- Back to previous page
- Show world map with daylight and night
|
- Choose unit (distance, area, volume, speed, weight, temperature, fuel consumption)
- Input (amount and unit)
- Result (amount and unit)
- Back to previous page
- Clear input field
|
To table of contents
- GARMIN Nüvi 865T:
This model has been discontinued; however, you can still order options for the Nüvi 865T.
To table of contents
All options for the GARMIN Nüvi 865T in detail.
To table of contents
 |
GARMIN MapSource City Navigator Australia including customer code to receive free unlock code (1 CD) |
|
 |
CHF 228 |
| |
EUR 176 |
details |
 |
GARMIN MapSource City Navigator Europe including customer code to receive free unlock code (1 DVD) |
|
|
CHF 138 |
| |
EUR 106 |
details |
  |
GARMIN MapSource City Navigator North America including customer code to receive free unlock code (1 DVD) |
|
|
CHF 98 |
| |
EUR 76 |
details |
 |
GARMIN MapSource City Navigator South Africa including customer code to receive free unlock code (1 CD) |
|
 |
CHF 158 |
| |
EUR 122 |
details |
Complete list of all MapSource products.
To table of contents
Quick start manuals, owner's manuals and firmware upgrade for GARMIN Nüvi 865T:
- Quick start manuals:
-
- Owner's manuals:
-
Documents marked with an asterisks (*) describe the GARMIN Nüvi 860, which provides the same features as the Nüvi 865T including voice activated navigation. The only feature missing is the lane assistant, please find a description of this feature in the documents for the Nüvi 765T
- Firmware Upgrade:
-
![[ Get Acrobat Reader ]](../bilder/get-acrobat-reader.gif) |
If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free. |
To table of contents
To order the GARMIN Nüvi 865T as well as options please:
- Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket.
- If the shopping basket does not work, please use this form.
Please read our terms and conditions.
To table of contents
Specifications and packaging of the products are subject to change without notice.
